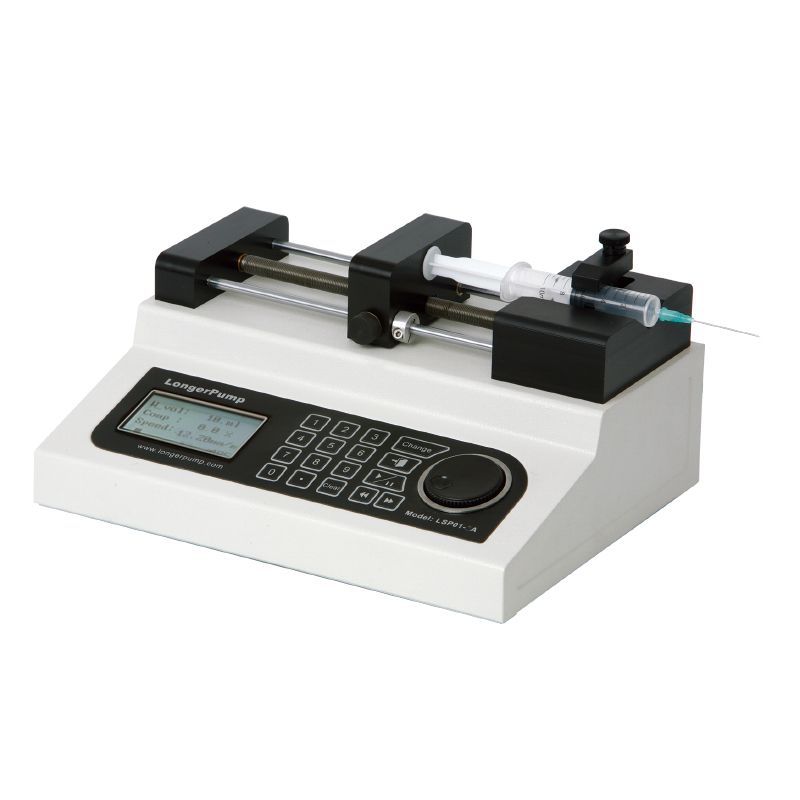

LSP01-3A Labor-Spritzenpumpe, 1 Kanal, 0,001μl - 43,349ml/min
Förderrate: 0,001μl - 43,349ml/min
Kanäle: 1
Wird hauptsächlich in Laboranwendungen verwendet.
Hervorragende EMV-Leistung, ESD≥Level IV (IEC 61000-4-2).
Die zulässige Spritzenspezifikation liegt zwischen 10 μl und 60 ml.
Geeignet für die Flüssigkeitsübertragung mit hoher Genauigkeit und kleinen Durchflussraten.
ca. 2-3 Wochen
Nur noch %1 verfügbar
Artikelnr.
LSP01-3A
$ 1.924,27
Regular Price
$ 2.138,08
Rabatt 10%
Funktionen
- Syringe Selection: The syringe can be selected in the manufacturer table which includes manufacturer, material and size or input the inner diameter of the syringe barrel directly
- Easy to operate: Combining big screen LCD display with rotary coded switch and membrane keypad makes the operation simple and prompt.
- Working Mode: Infusion
- Memory Function:
- The parameters are saved in EEPROM. The parameters don't need to be reset when power returns after an interruption
- In flow rate mode, the pump remains running or stop according to the setting parameters when power returns after an interruption
- Protection Function: The pump will stall and give an alarm when the drive structure of the pump is blocked
- Communication Function: Realize computer control through RS485 communication interface
- External Control Function: Input/output control
- Calibration Function: Acquire accurate volume through calibration
- Syringe Protection: Adjust syringe rest to prevent syringe from damaging
Spezifikationen
| No. of Syringes | 1 |
| Advance per Mircostep | 1/16step: 0,156 µm |
| Infusion Volumn per Microstep | 0,13 µL (60 mL BD Syringe) |
| Syringe Size | 10 µL - 60 mL |
| Max, Linear Rate | 65 mm/min |
| Min, Linear Rate | 5µm/min |
| Flow Rate | 0,831 nL/min - 54,155 ml/min |
| Working Mode | Infusion |
| Linear Force | > 9 kgf |
| Max, Step Rate | 6933 (1/16step)/ sec |
| Min, Step Rate | 16 (1/16 step) /30 sec |
| Accuracy | = 0,5% error in the condition of > 30% of max, infusion distance |
| Setting Mode | Rotary coded switch and membrane keypad |
| Display | 128 x 64 graphic LCD |
| Power | AC 196V-240V/20W |
| Operating Condition | Temperature 5 °C - 40 °C Relative humidity < 80 % |
| Dimensions | 280 × 210 × 140 mm |
| Weights | 3,6 kg |
Spritzen
| Syringe | Syringe ID (mm) | Flow Rate (µl/min-ml/min) |
| 10µl | 0,5 | 0,001-0,0128 |
| 25µl | 0,8 | 0,0025-0,0327 |
| 50µl | 1,1 | 0,0048-0,0618 |
| 100µl | 1,6 | 0,0101-0,1307 |
| 250µl | 2,3 | 0,0208-0,2701 |
| 500µl | 3,25 | 0,0415-0,5392 |
| 1ml | 4,72 | 0,0875-1,1373 |
| 2ml | 9 | 0,3181-4,1351 |
| 5ml | 13,1 | 0,6739-8,7608 |
| 10ml | 16,6 | 1,0821-14,068 |
| 20ml | 19 | 1,4176-18,429 |
| 30ml | 23 | 2,0774-27,006 |
| 60ml | 29,14 | 3,3346-43,349 |
